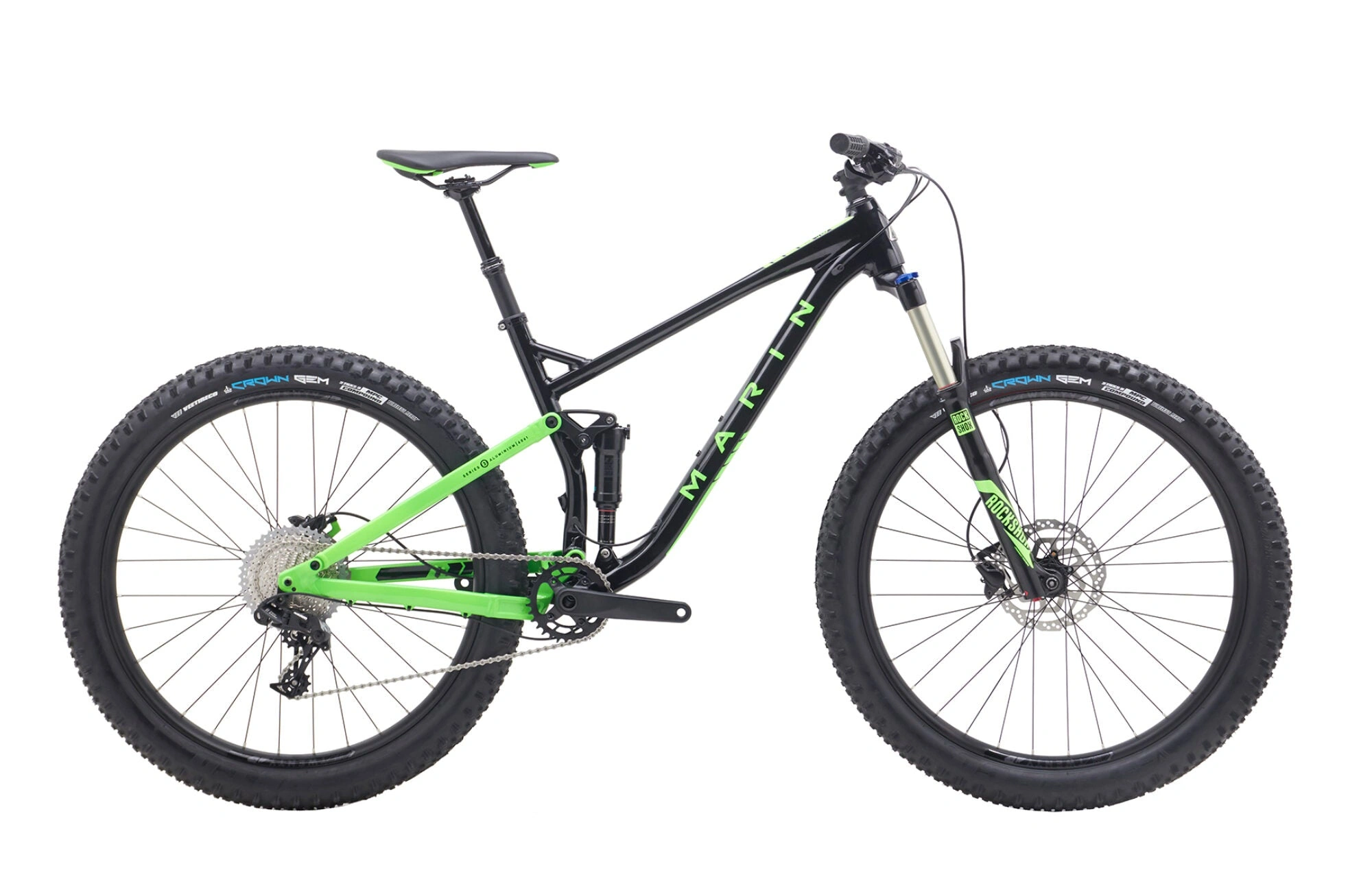

Color: Gloss BlackALL-TERRAIN TRAIL SHREDDERSANDY, ROCKY, NASTY TRAILSRIDERS LOOKING TO TAKE THE EDGE OFFThe B-17 is our most capable MultiTrac bike, built for theall-day trail rider looking for a playful bike with maximumtraction. Plus-sized tires are an instant confidence boost andtraction upgrade, sticking to most everything and making itpossible to climb and descend sketchy parts of trail that mayhave required hoofing it before.SIZE RIDER HEIGHT RANGES 5'3' to 5'6'M 5'6' to 5'10'L 5'10' to 6'2'XL 6'2' to 6'4'FRAMESeries 3 6061 Aluminum Frame, 27.5+� Wheels, 120mm Travel MultiTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle **Compatible w/ 29'FORKRockShox Recon Gold RL 27.5+, 130mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm OffsetREAR SHOCKRockShox Monarch R Debonair, 210x50mm, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 25mm x M8 HardwareRIMSMarin Aluminum Double Wall, 38mm Inner, Pinned Joint, Disc Specific, Tubeless CompatibleHUB REARFormula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32HHUB FRONTFormula, 110x15mm, Centerlock Disc, 32HSPOKES14g Black Stainless SteelTIRESVee Tire, Crown Gem 27.5x2.8', Dual Control Compound, Folding Bead, Tubeless CompatibleDERAILLEUR REARSRAM NX 11-SpeedDERAILLEUR FRONT- - -SHIFT LEVERSRAM NX 1x11-SpeedCRANKSETFSA Comet, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost SpacingBOTTOM BRACKETExternal Sealed Cartridge BearingsCHAINKMC X11 Extra LightCASSETTESunRace 11-Speed, 11-42TBRAKES FRONTShimano BR-M315 Hydraulic Disc, 180mm RotorBRAKES REARShimano BR-M315 Hydraulic Disc, 160mm RotorBRAKE LEVERSShimano BL-M315 HydraulicHANDLEBARMarin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 780mm Width, 4� Up, 9� BackSTEMMarin 3D Forged Alloy, 45mmGRIPSMarin Single Clamp LockingHEADSETFSA No 57E, Sealed Cartridge Bearings, 1 1/8' x 1 1/2�SEATPOSTTranzX Dropper Post, YSP15 w/ 1x Remote, Size S 100mm Travel, All Other Sizes: 120mm TravelSADDLEMarin Speed ConceptPEDALS- - -EXTRASTranzX Bolt-on Thru-AxleA. STACK (MM) 613 617 622 627B. REACH (MM) 415 435 456 485C. HEADTUBE ANGLE 67� 67� 67� 67�D. HEADTUBE LENGTH (MM) 100 105 110 115E. SEATTUBE ANGLE VIRTUAL 73.4� 73.4� 73.4� 73.4�F. SEATTUBE ANGLE ACTUAL 67� 67� 67� 67�G. SEATTUBE LENGTH (MM) 385 420 450 480H. TOPTUBE ACTUAL (MM) 538 558 580 614I. TOPTUBE EFFECTIVE (MM) 587 613 638 672J. BOTTOM BRACKET HEIGHT (MM) 323.5 323.5 323.5 323.5K. BOTTOM BRACKET DROP (MM) 35 35 35 35L. CHAINSTAY (MM) 435 435 435 435M. WHEELBASE (MM) 1138 1160 1181 1213N. STANDOVER HEIGHT (MM) 678 707 719 745O. FORK OFFSET (MM) 51 51 51 51SEATPOST DIAMETER (MM) 30.9 30.9 30.9 30.9HANDLEBAR WIDTH (MM) 780 780 780 780STEM LENGTH (MM) 45 45 45 45CRANK LENGTH (MM) 170 175 175 175
